Guide to Steel Scale Graph for Steel, Stainless, Aluminum, Brass and also More
Engineers might require a steel metal scale chart to figure out the called dimensions of the material to be machined, to comprehend the scale system, here we’ll explain what is sheet metal gauge, just how does it work and also the metal gauge graph for stainless-steel, sheet steel, galvanized steel, aluminum, brass, and also copper.

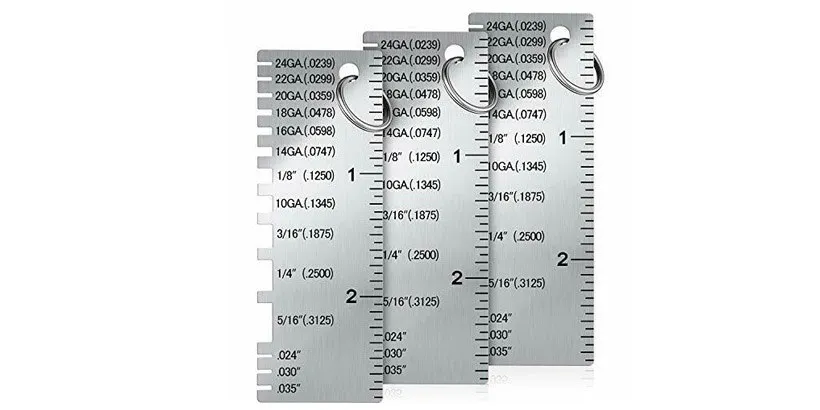

What is Sheet Metal Gauge?
A sheet metal gauge is an indicator of the common thickness of detailed steel materials, such as steel, copper, and also aluminum. The bigger the gauge number, the thinner the metal (not applicable for zinc). There are additionally determine numbers like 000000 and also 0 for aluminum and also stainless steel, the metal thickness of 000000 scales is larger than 0 scales.
Just How Does Sheet Metal Gauge Work?
The metal scale graph will note the scale number and also the equivalent thickness of specific metal, in inches or millimetres. In enhancement, the same gauge number for various materials presents various thickness, for example, 37 scales stainless steel is 0.0066 inches thick, while 37 gauge aluminum is 0.0045 inches thick.
There are various scale dimension standards, the comparable thickness for each scale is various, the requirement is developed according to the weight of the sheet for a provided material. In the UK, the Birmingham Scale (BG) is made use of for metals in strip & tubing as well as a conventional exists for Zinc in which a higher scale number shows a thicker sheet.
Metal Gauge Graph for Different Materials
Check out a total checklist of steel gauge graph for sheet steel, galvanized steel, stainless steel, brass, aluminum, as well as copper.
Sheet Steel Metal Gauge Graph
Thickness | Weight Per Area | |||
Gauge | in | mm | Ib/ft² | kg/m² |
3 | 0.2391 | 6.073 | 9.754 | 47.624 |
4 | 0.2242 | 5.695 | 9.146 | 44.656 |
5 | 0.2092 | 5.314 | 8.534 | 41.668 |
6 | 0.1943 | 4.935 | 7.927 | 38.701 |
7 | 0.1793 | 4.554 | 7.315 | 35.713 |
8 | 0.1644 | 4.176 | 6.707 | 32.745 |
9 | 0.1495 | 3.797 | 6.099 | 29.777 |
10 | 0.1345 | 3.416 | 5.487 | 26.790 |
11 | 0.1196 | 3.038 | 4.879 | 23.822 |
12 | 0.1046 | 2.657 | 4.267 | 20.834 |
13 | 0.0897 | 2.278 | 3.659 | 17.866 |
14 | 0.0747 | 1.897 | 3.047 | 14.879 |
15 | 0.0673 | 1.709 | 2.746 | 13.405 |
16 | 0.0598 | 1.519 | 2.440 | 11.911 |
17 | 0.0538 | 1.367 | 2.195 | 10.716 |
18 | 0.0478 | 1.214 | 1.950 | 9.521 |
19 | 0.0418 | 1.062 | 1.705 | 8.326 |
20 | 0.0359 | 0.912 | 1.465 | 7.151 |
21 | 0.0329 | 0.836 | 1.342 | 6.553 |
22 | 0.0299 | 0.759 | 1.220 | 5.955 |
23 | 0.0269 | 0.683 | 1.097 | 5.358 |
24 | 0.0239 | 0.607 | 0.975 | 4.760 |
25 | 0.0209 | 0.531 | 0.853 | 4.163 |
26 | 0.0179 | 0.455 | 0.730 | 3.565 |
27 | 0.0164 | 0.417 | 0.669 | 3.267 |
28 | 0.0149 | 0.378 | 0.608 | 2.968 |
29 | 0.0135 | 0.343 | 0.551 | 2.689 |
30 | 0.0120 | 0.305 | 0.490 | 2.390 |
31 | 0.0105 | 0.267 | 0.428 | 2.091 |
32 | 0.0097 | 0.246 | 0.396 | 1.932 |
33 | 0.0090 | 0.229 | 0.367 | 1.793 |
34 | 0.0082 | 0.208 | 0.335 | 1.633 |
35 | 0.0075 | 0.191 | 0.306 | 1.494 |
36 | 0.0067 | 0.170 | 0.273 | 1.335 |
37 | 0.0064 | 0.163 | 0.261 | 0.275 |
38 | 0.0060 | 0.152 | 0.245 | 1.195 |
Galvanized Steel Metal Gauge Graph
Thickness | Weight Per Area | |||
Gauge | in | mm | Ib/ft² | kg/m² |
8 | 0.1681 | 4.270 | 6.858 | 33.482 |
9 | 0.1532 | 3.891 | 8.250 | 30.514 |
10 | 0.1382 | 3.510 | 5.638 | 27.527 |
11 | 0.1233 | 3.132 | 5.030 | 24.559 |
12 | 0.1084 | 2.753 | 4.422 | 21.591 |
13 | 0.0934 | 2.372 | 3.810 | 18.603 |
14 | 0.0785 | 1.994 | 3.202 | 15.636 |
15 | 0.0710 | 1.803 | 2.896 | 14.142 |
16 | 0.0635 | 1.613 | 2.590 | 12.648 |
17 | 0.0575 | 1.461 | 2.346 | 11.453 |
18 | 0.0516 | 1.311 | 2.105 | 10.278 |
19 | 0.0456 | 1.158 | 1.860 | 9.083 |
20 | 0.0396 | 1.006 | 1.615 | 7.888 |
21 | 0.0366 | 0.930 | 1.493 | 7.290 |
22 | 0.0336 | 0.853 | 1.371 | 6.692 |
23 | 0.0306 | 0.777 | 1.248 | 6.095 |
24 | 0.0276 | 0.701 | 1.126 | 5.497 |
25 | 0.0247 | 0.627 | 1.008 | 4.920 |
26 | 0.0217 | 0.551 | 0.885 | 4.322 |
27 | 0.0202 | 0.513 | 0.824 | 4.023 |
28 | 0.0187 | 0.475 | 0.763 | 3.725 |
29 | 0.0172 | 0.437 | 0.702 | 3.426 |
30 | 0.0157 | 0.399 | 0.640 | 3.127 |
31 | 0.0142 | 0.361 | 0.579 | 2.828 |
32 | 0.0134 | 0.340 | 0.547 | 2.669 |
Stainless Steel Metal Gauge Graph
Thickness | Weight Per Area | |||
Gauge | in | mm | Ib/ft² | kg/m² |
0000000 | 0.5000 | 12.700 | 20.808 | 101.594 |
000000 | 0.4586 | 11.902 | 19.501 | 95.213 |
00000 | 0.4375 | 11.113 | 18.207 | 88.894 |
0000 | 0.4063 | 10.320 | 16.909 | 82.555 |
000 | 0.3750 | 9.525 | 15.606 | 76.195 |
00 | 0.3438 | 8.733 | 14.308 | 69.856 |
0 | 0.3125 | 7.938 | 13.005 | 63.496 |
1 | 0.2813 | 7.145 | 11.707 | 57.157 |
2 | 0.2656 | 6.746 | 11.053 | 53.966 |
3 | 0.2500 | 6.350 | 10.404 | 50.797 |
4 | 0.2344 | 5.954 | 9.755 | 47.627 |
5 | 0.2187 | 5.555 | 9.101 | 44.437 |
6 | 0.2031 | 5.159 | 8.452 | 41.267 |
7 | 0.1875 | 4.763 | 7.803 | 38.098 |
8 | 0.1719 | 4.366 | 7.154 | 34.928 |
9 | 0.1562 | 3.967 | 6.500 | 31.738 |
10 | 0.1406 | 3.571 | 5.851 | 28.568 |
11 | 0.1250 | 3.175 | 5.202 | 25.398 |
12 | 0.1094 | 2.779 | 4.553 | 22.229 |
13 | 0.0937 | 2.380 | 3.899 | 19.039 |
14 | 0.0781 | 1.984 | 3.250 | 15.869 |
15 | 0.0703 | 1.786 | 2.926 | 14.284 |
16 | 0.0625 | 1.588 | 2.601 | 12.699 |
17 | 0.0562 | 1.427 | 2.239 | 11.419 |
18 | 0.0500 | 1.270 | 2.081 | 10.159 |
19 | 0.0437 | 1.110 | 1.819 | 8.879 |
20 | 0.0375 | 0.953 | 1.561 | 7.620 |
21 | 0.0344 | 0.874 | 1.432 | 6.990 |
22 | 0.0312 | 0.792 | 1.298 | 6.339 |
23 | 0.0281 | 0.714 | 1.169 | 5.710 |
24 | 0.0250 | 0.635 | 1.040 | 5.080 |
25 | 0.0219 | 0.556 | 0.911 | 4.450 |
26 | 0.0187 | 0.475 | 0.778 | 3.800 |
27 | 0.0172 | 0.437 | 0.716 | 3.495 |
28 | 0.0156 | 0.396 | 0.649 | 3.170 |
29 | 0.0141 | 0.358 | 0.587 | 2.285 |
30 | 0.0125 | 0.318 | 0.520 | 2.540 |
31 | 0.0109 | 0.277 | 0.454 | 2.215 |
32 | 0.0102 | 0.2529 | 0.424 | 2.073 |
33 | 0.0094 | 0.239 | 0.391 | 1.910 |
34 | 0.0086 | 0.218 | 0.358 | 1.747 |
35 | 0.0078 | 0.198 | 0.325 | 1.585 |
36 | 0.0070 | 0.178 | 0.291 | 1.422 |
37 | 0.0066 | 0.168 | 0.275 | 1.341 |
38 | 0.0062 | 0.157 | 0.258 | 1.260 |
Aluminum Metal Gauge Graph
Thickness | Weight Per Area | |||
Gauge | in | mm | Ib/ft² | kg/m² |
000000 | 0.5800 | 14.732 | 8.185 | 39.962 |
00000 | 0.5165 | 13.119 | 7.289 | 35.587 |
0000 | 0.4600 | 11.684 | 6.492 | 31.694 |
000 | 0.4096 | 10.404 | 5.780 | 28.222 |
00 | 0.3648 | 9.266 | 5.148 | 25.135 |
0 | 0.3249 | 8.252 | 4.585 | 22.386 |
1 | 0.2893 | 7.348 | 4.083 | 19.933 |
2 | 0.2576 | 6.543 | 3.635 | 17.749 |
3 | 0.2294 | 5.827 | 3.237 | 15.806 |
4 | 0.2043 | 5.189 | 2.883 | 14.076 |
5 | 0.1819 | 4.620 | 2.567 | 12.533 |
6 | 0.1620 | 4.115 | 2.286 | 11.162 |
7 | 0.1443 | 3.665 | 2.036 | 9.942 |
8 | 0.1285 | 3.264 | 1.813 | 8.854 |
9 | 0.1144 | 2.906 | 1.614 | 7.882 |
10 | 0.1019 | 2.588 | 1.438 | 7.021 |
11 | 0.0907 | 2.304 | 1.280 | 6.249 |
12 | 0.0808 | 2.052 | 1.140 | 5.567 |
13 | 0.0720 | 1.829 | 1.016 | 4.961 |
14 | 0.0641 | 1.628 | 0.905 | 4.417 |
15 | 0.0571 | 1.450 | 0.806 | 3.934 |
16 | 0.0508 | 1.290 | 0.717 | 3.500 |
17 | 0.0453 | 1.151 | 0.639 | 3.121 |
18 | 0.0403 | 1.024 | 0.569 | 2.777 |
19 | 0.0359 | 0.912 | 0.507 | 2.474 |
20 | 0.0320 | 0.183 | 0.452 | 2.205 |
21 | 0.0285 | 0.724 | 0.402 | 1.964 |
22 | 0.0253 | 0.643 | 0.357 | 1.743 |
23 | 0.0226 | 0.574 | 0.319 | 1.557 |
24 | 0.0201 | 0.511 | 0.284 | 1.385 |
25 | 0.0179 | 0.455 | 0.253 | 1.233 |
26 | 0.0159 | 0.404 | 0.224 | 1.096 |
27 | 0.0142 | 0.361 | 0.200 | 0.978 |
28 | 0.0126 | 0.320 | 0.178 | 0.868 |
29 | 0.0113 | 0.287 | 0.159 | 0.779 |
30 | 0.0100 | 0.254 | 0.141 | 0.689 |
31 | 0.0089 | 0.226 | 0.126 | 0.613 |
32 | 0.0080 | 0.203 | 0.113 | 0.551 |
33 | 0.0071 | 0.180 | 0.100 | 0.489 |
34 | 0.0063 | 0.160 | 0.089 | 0.434 |
35 | 0.0056 | 0.142 | 0.079 | 0.386 |
36 | 0.0050 | 0.127 | 0.071 | 0.345 |
37 | 0.0045 | 0.114 | 0.064 | 0.310 |
38 | 0.0040 | 0.102 | 0.056 | 0.276 |
39 | 0.0035 | 0.089 | 0.049 | 0.241 |
40 | 0.0031 | 0.079 | 0.044 | 0.214 |
Brass Metal Gauge Graph
Gauger Number |
Inches | MM |
7 | .1443 | 3.665 |
8 | .1285 | 3.264 |
9 | .1144 | 2.906 |
10 | .1019 | 2.588 |
11 | .09074 | 2.305 |
12 | .08081 | 2.053 |
14 | .06408 | 1.628 |
16 | .05082 | 1.291 |
18 | .04030 | 1.024 |
20 | .03196 | .812 |
22 | .02535 | .644 |
24 | .052010 | .511 |
26 | .01594 | .405 |
28 | .01264 | .321 |
30 | .01003 | .255 |
Copper Metal Gauge Graph
Gauger Number |
Inches | MM |
7 | .180 | 4.572 |
8 | .165 | 4.191 |
9 | .148 | 3.759 |
10 | .134 | 3.404 |
11 | .120 | 3.048 |
12 | .109 | 2.769 |
14 | .083 | 2.108 |
16 | .065 | 1.651 |
18 | .049 | 1.245 |
20 | .035 | .889 |
22 | .028 | .711 |
24 | .022 | .559 |
26 | .018 | .457 |
28 | .014 | .356 |
30 | .012 | .305 |
