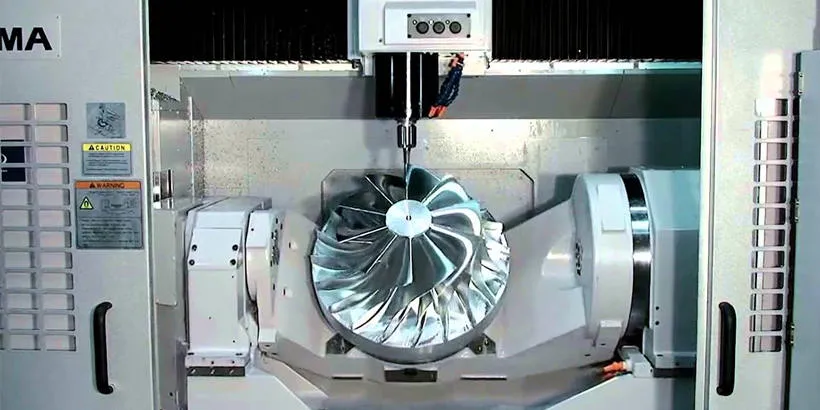

6 Reasons For Cause Tool Collision In CNC Machining Center

6 Reasons For Cause Tool Collision In CNC Machining Center

CNC machining center has high machining precision, great dimensional stability, low labor strength and convenient for modern administration. Nonetheless, because of inappropriate operation or programming mistakes as well as other factors, it is simple to make the tool or turret struck the work surface or equipment, and will harm the tool, machined components, or the maker tool components, so that the machining precision of the makers shed, and also trigger individual crashes.

From the perspective of preserving precision, it’s never enabled to cause tool accident in the use of CNC machining. In the following article, we summarize and also analyze the causes of cutter collision of the CNC machining facility. Recognizing these causes can prevent tool collision accidents in machining centers as well as reduce unnecessary losses.

What are the primary aspects that cause the tool collision in the CNC machining center as well as how to stay clear of CNC machining facility crashing tool mishap? Right here’s every little thing you need to know.

Neglect to turn off the idle switch during machining

In order to conserve time, the idle button is often turned on during program simulation. Still, operation indicates that all moving axes of the maker tool run at the rate of G00. If the running button is not turned off in the handling time and space, the maker device will overlook the provided feed rate as well as go for the rate of G00, leading to knife strike and maker accident accidents.

The overtravel is not in the right direction

When the machine tool overtravel, you should hold the overtravel as well as press the release button, and also relocate the contrary direction manually or by hand. If the instructions of elimination are reversed, the equipment device will be harmed. Due to the fact that when the override launch is pressed, the override defence of the machine tool will certainly not work, and the travel button of the override protection is currently at the end of the travelling. Currently, it may cause the worktable to remain to move in the direction of overtravel, and also ultimately pull the screw, causing damages to the machine tool.

There was no return to the reference point after the simulation

When checking the program, the machine device is locked, while the tool about the work surface is running in simulation (absolute works with and family member works with are transforming), the works with are not regular with the actual position, so the method of returning to the referral factor must be utilized to ensure that the mechanical absolutely no collaborates are consistent with the absolute and loved one works with. If no worry is located after inspecting the program, the tool will collide.

It’s not validated whether the machine tool is locked

Because the CNC machining center is secured by a software program, when the automatic operation switch is pressed in the simulation user interface, it is not instinctive to see whether the device has actually been locked. When simulating, there is typically no device setting. It is simple to crash the tool if the maker device is not secured. Before the simulation handling, you need to go to the procedure interface to verify whether the equipment device is locked.

The cursor position is not correct when the specified row is running

For the lathe, it is necessary to call the device balanced out the value of the device used. If the device is not called, the tool running the program section might not be the desired tool, and also it is extremely most likely that the tool crash will be created due to different devices.

The incorrect operation will certainly cause cutter collision in the CNC machining center

When the operator operates the CNC lathe to refine the workpiece, the tool setup error or device wear will influence the dimensional precision of the workpiece, so the tool needs to be compensated. The tool settlement should pay attention to the payment instructions and also the quantity of settlement. On a regular basis inspect whether the device compensation value is proper. When inputting the device payment value, if the “+” indicator is outputted as “one” and also “X0.08” is inputted as “X8”, it may take place that the tool straight hurries to the work surface or the chuck after carrying out the program, triggering the workpiece to be scrapped, device damages, chuck accident as well as other mishaps.

These are CNC machining center tool collision factors as well as hope this guide can assist you to avoid a knife accident of CNC machining. With the growth of technology, advanced modern technologies such as tool damages discovery, device anti-collision discovery, machine tool adaptive handling and so on appear, which can much better secure the CNC machine.
