What is CNC Turning?

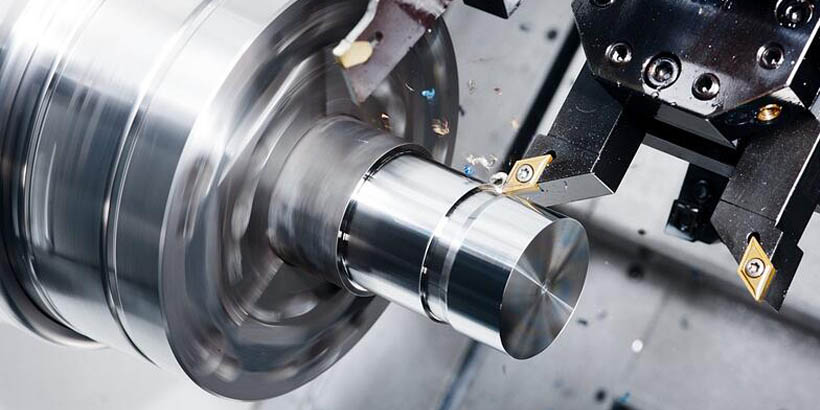

CNC Turning is a manufacturing process in which bars of material are held in a chuck and rotated while a device is fed to the item to remove material to produce the desired shape. A turret (shown centre), with tooling affixed, is programmed to relocate to the bar of basic material as well as eliminate material to create the programmed outcome. This is likewise called “subtraction machining” considering that it includes product elimination. If the facility has both tunings as well as milling capabilities, such as the one over, the rotation can be stopped to enable milling out of other shapes.

  • The beginning material, though usual round, can be various other forms such as hexagons or squares.
  • Relying on the bar feeder, the bar length can vary. This impacts just how much handling is needed for quantity tasks.
  • CNC lathes or turning facilities have tooling placed on a turret that is computer-controlled. The more devices that the turret can hold, the extra options are readily available for intricacies on the part.
  • CNC’s with “live” tooling alternatives, can stop bench turning as well as include added features such as pierced holes, slots and also milled surfaces.
  • Some CNC turning facilities have one spindle, permitting job to be done all from one side, while other transforming facilities, such as the one revealed over, have two pins, a sub-spindle and a major. A part can be partially machined on the primary pin, transferred to the sub-spindle as well as have actually extra work done to the opposite side of this setup.
  • There are various sort of CNC turning facilities with various kinds of tooling options, pin choices, outer size constraints along power and also speed capacities that impact the types of components that can be financially made on it.

Is my part a great fit for CNC turning?

While a lot of variables go into figuring out if a part can be made most cost-effectively on a specific CNC turning centre, some points we check out are:

  • The number of components is needed temporary as well as long-lasting? CNC turning centres are generally great for models to short-run volumes.
  • What is the biggest OD on the part? For the CNC turning facilities at Leader Service, the maximum OD for accumulated (bar feed-capable) components is 2.5.”
  • Components over 2.5 ″ OD are chucked individually, which depending upon volume, can contribute to the price.
  • Parts under 1.25 ″ OD as well as medium to high quantity may be better suitable for the Swiss screw machines.
  • If a part can be made both on the CNC turning centre and on a 32 mm Swiss Screw Machine aspects such as projected quantity and lead-time are critical for making the very best get in touch with which to make use of.

There are a whole lot of variables when it comes to machining parts. Pioneer Solution can help you figure out the most effective way to have your components made. Contact us for help with your requirements.
