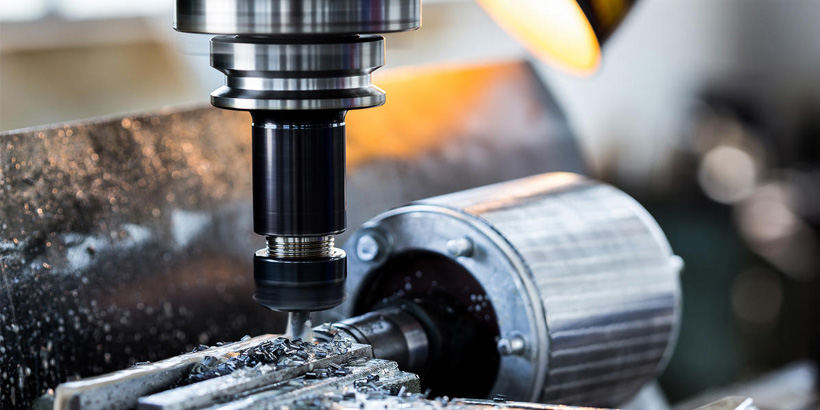

An Overview to CNC Drilling

An Overview to CNC Drilling

The drill bit is a commonly made use of machining device in mechanical manufacturing, specifically, in the process of drilling openings of certain parts, we have updated the listing of drill little bit and also tap dimension, you can check it for picking best exploration device representing the desired size. Today we introduce some attributes as well as pointers of CNC drilling, which entails chip breaking and elimination, hole precision improvement as well as even more.

Features of Drilling and Drilling Tool

There are lots of kinds of drills according to the shapes, materials, functions, as well as structures, such as high-speed steel drills (twist drills, team drills, flat drills), solid carbide drills, deep drills, and replaceable bits. The drill bit normally has two major reducing edges, the bit cutting the product when rotating, the cutting rate of the drill bit is higher at the external circle and also often tends to lower while towards the facility, and the cutting speed of the rotating centre of the little bit is 0.

Chip Breaking and also Elimination in CNC Exploration Process

The cutting of the drill bit is accomplished in the hole, which is a narrow area, the cutting chips need to be released with the groove of the drill bit, so the chip kind or shapes will have a terrific influence on the performance of the drilling device. The usual chip forms consisting of flake chip, tubular chip, spiral chip, fan-shaped chips, powder-like chips, and so on. The chip control is a crucial variable of boring machining, when the chip shapes are unacceptable, some issues will be caused:

  • Thin chips block the cutting edge groove, affect the boring accuracy, lower the life of the bit, and even break the tool, like the powder-like chips.
  • The lengthy cutting chips around the bit will hinder the operation, creates the bit to break or block the cutting fluid from entering the hole, such as spiral chips.

Exactly how to Break and also Eliminate the Boring Chips?

  • Using one or more techniques of boosting feed, recurring feed, grind cross side as well as mount chop breaker, to boost the chip breakage and also removal.
  • Make use of specialized chip breaking bit. For example, adding a created chip damaging edge in the groove of the drill bit can break the lengthy or thick chips and also make them much easier to remove. Particles can be gotten rid of efficiently along the trench without obstructing. The reducing effect of the brand-new chip damaging drill is much far better than that of the traditional drill. Additionally, the shorter and smaller sized chips make cutting liquid flow to the drill idea much faster, better boosts the warm dissipation effect as well as reducing performance in the handling.

Hole Precision in CNC Drilling

Hole Precision in CNC Drilling

The hole accuracy is associated with hole size (diameter), position accuracy, coaxial, roundness, surface roughness, burr, as well as various other factors.

Factors affecting the hole precision as well as the accuracy of the CNC boring components:

  • Securing accuracy as well as cutting conditions of the bit, such as tool holder, cutting speed, feed rate, cutting liquid, etc;
  • Drill little bit size and shape, such as little bit length, side shape, core form, etc;
  • The form of the work surface, such as the opening shape of the hole, the density, the clamping state, and so on.

The pointers for improving the positioning precision

  • Drill the main hole;
  • Use completion milling cutter to mill the hole seat;
  • Select a bit with great reducing performance and rigidity;
  • Minimize the feed rate.

In CNC boring process, it’s simple to create a burr at the entrance of the hole, DEK can use deburring as well as various other metal surface area therapy, in addition to accuracy CNC boring services for acquiring the most effective surface area coating for the machined parts.
