Angular milling or angle milling is a CNC milling procedure that entails machining a surface area at an angle with the angle milling cutter. Today, we’ll enter into the basics of angle milling and the reducing tool, more notably, there are different ways you can refer to for just how to cut angles on a milling machine.

What is Angle Milling?

Angle milling, also called angular milling, describes the procedure of milling flat surfaces that are neither parallel neither vertical to the axis of the reducing tool, which implies the surface area to be machined goes to an angle to the axis of the rotating milling cutter. The annular groove can be the solitary or dual-angle, as well as differing according to the kind as well as the contour of the annular cutter used.

Types of Angle Milling Cutters

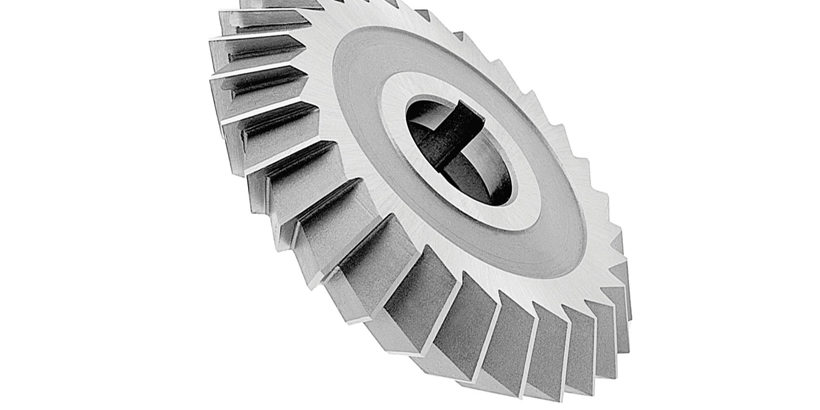

There are 2 sorts of angle cutters consisting of solitary angle milling cutters and also double (equivalent) angle milling cutters. Single-angle cutters have teeth on the angular or cone-shaped face of the cutter as well as on the huge flat side. A solitary angle cutter is developed for crushing dovetails, chamfering, or beveling parts as well as manufactured in solitary right and also left angles at 45 ° & 60 °. Double or equivalent angle cutters have v-shaped teeth with both conelike surfaces at an angle to the end deals with, used for grating strings, v-grooves, serrations, as well as other angular surface areas. Double angles are generally provided in 45 °, 60 °, & 90 ° angles.

Exactly How to Cut Angles on a Milling Machine?

If you desire to mill an angle on a steel plate when the milling equipment does not have a tilting head. Instead of utilizing a sine bar, you can figure out the vertical variance over a known range and also set up with a dive indicator or those fin angles, probably don’t require to be at an excellent collection angle, simply eyeball it on a basic bevel protractor.
