Screws and bolts are designed to a substantial range of sizes and shapes for wide uses. In this article, DEK will certainly check out varying bolts types as well as sizes.

What are Bolts?

Bolts are a type of on the surface threaded bolt utilized with a nut. It will not revolve in the setting up procedure, however is tightened up by transforming the nut. The blot is usually put right into an existing threaded hole or gone through the material to develop its very own interior thread, and after that, it is tightened by applying torque to the head.

Types of Blots as well as Their Usages

CNC milling services, as well as machining techniques at DEK, can manufacturing and finish large kinds of fasteners including bolts, screws, nuts as well as other threaded components. For customized products in specific applications, the Online CNC layout additionally offers your needs.

Types of Blots as well as Their Usages

  • Elevator bolt: with a slim level or countersunk head and a square undercut, made use of to hold together canvas belts utilized in grain elevators. The head diameter of elevator screws is larger than various other kinds, which can prevent the bolt from experiencing soft conveyor material.
  • Lag bolt: develop its very own thread in timber and various other soft products when tightened up, exceptionally durable fasteners, typically used to link heavy lumber or other heavy products that are bearing an extreme lot.

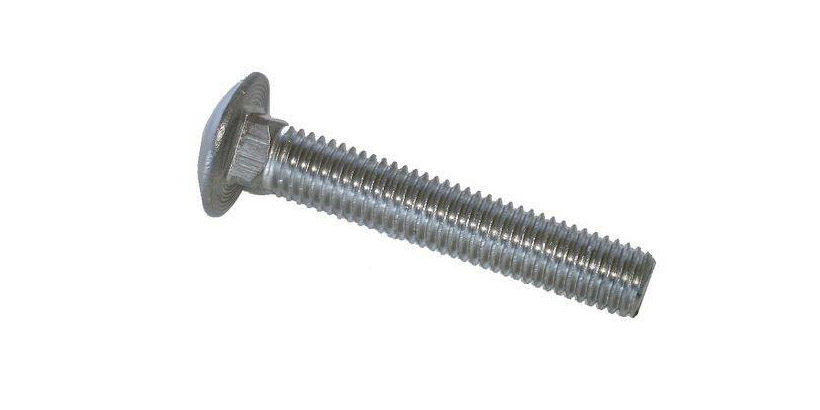

  • Carriage bolt: with a round head as well as square neck, used to fasten steel to steel or steel to timber. When tightened up, the undercut of the bolt head is square to prevent the screw from transforming.
  • Hex bolt: with a hexagonal head as well as device strings for use in different applications, such as fastening wood, steel, or other materials in bridges, structures as well as more building jobs.
  • Anchor bolt: with a threaded component in one end as well as non-threaded in another end, which can be made in L form, Pin kind, Wedge type, or other types, utilized to link non-structural and also structural elements to the concrete.
  • Eyebolt: with a loop at one end as well as threads at another, made use of to connect a protecting eye to a framework, to ensure that ropes or cable televisions might after that be connected to it.
  • Shoulder blot: has a cylindrical non-threaded shoulder under the head that allows the component to revolve around or slide along its size, its typical applications are pulley-blocks, moving engine components as well as mechanical assemblies, gears as well as rolling wheels.
  • J-bolt: J-shaped screw with strings at non-curved sections, normally made use of in architectural applications consisting of fastening wall surfaces to concrete.
  • U-bolt: in the shape of the letter “U” with threads on both ends, mainly being used to sustain pipework, pipes through which liquids, as well as gasses, pass.
  • Machine bolt: with a totally threaded shaft and also a semi-cone point, used to attach wood to wood, wood to steel as well as metal to steel. Its point will certainly not be chamfered or rounded. Machine bolts can be separated right into hex screws and also square bolts based upon the head type.
  • Hanger bolt: headless, double-ended bolts that have strings at each end, used to put on hold items from or attach items to wood.
  • Flange blot: has a circular flange under the head that acts like a washing machine to disperse the lots.
  • Sex bolt: also known as barrel screw, with a barrel-shaped flange and also extending manager that is internally threaded. Its breeding women element can cover the screw shank and it does not need a nut, typically used to attach items that can’t be revealed to the rough strings.

Bolts Sizes & Dimension

The size of a statistics screw is specified as diameter, length, and pitch, in millimeters, as an example, in M8-1.0 * 20, the “M” indicates the Metric string classification, the digit 8 describes the Nominal size (in millimeters), 1.0 refers to the pitch, and 20 describes the length. The screw dimension can also be shared in royal devices.
Diameter: the size of the screw shank, the bolt head is not consisted of.
Pitch: the dimension in between the peak of nearby strings on the bolt’s shank, equal to the proportion of strings to device size.
Length: the measurement from the chamfered edge to the undercut of the head, and also bolt head is not consisted of.
