The building electric CAD blocks can be used with 2D or 3D layout software to save time, like the DWG file in AutoCAD. In this article, we present some CAD electric signs for recommendation and the place to check and download and install even more CAD electric icons and electrical drawings collection.

What are CAD Electrical Symbols and also Why Usage It?

CAD Electric Symbols are a collection of electrical block and also drawings used to create CAD drawings in DWG file styles with AutoCAD as well as other 2D or 3D layout software program, developing your own electric symbols blocks from the ground up in AutoCAD needs an amount of time, so download and install the CAD electric symbols library and also use the CAD electrical blocks can save much time and quicken the creating procedure.

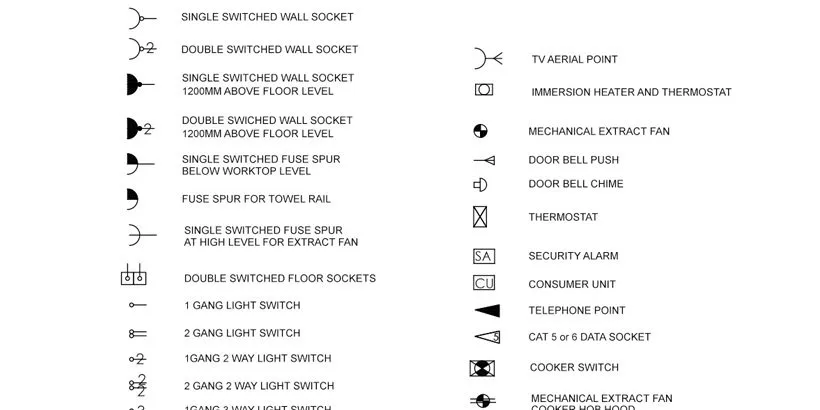

CAD Electrical Symbols Blocks

You can obtain a complimentary CAD library of the electrical icons in AutoCAD. The icons legend consisted of is as the complying with list:

  • SingleSwitched Wall Socket
  • DoubleSwitched Wall Socket
  • Single Switched Wall Socket(1200MM over flooring level).
  • Double Switched Wall Socket (1200MM above flooring level).
  • SingleSwitched Fused Spur (Below worktop level).
  • Fuse Spur for Towel Rail.
  • SingleSwitched Fused Spur (At high level for extract fan).
  • DoubleSwitched Flooring Sockets.
  • 1 Gang Light Switch.
  • 2 Gang Light Switch.
  • 1 Gang 2 WayLight Change.
  • 2 Gang 2 WayLight Switch.
  • 1 Gang 3 WayLight Switch.
  • 2 Gang 3 Way Light Switch.
  • 1 Gang Pull CordLight Switch.
  • External Light.
  • External Light– Bulkhead Type.
  • Recessed Downlighter.
  • Wall Light.
  • Light Point- Pendant Holder (4 inches).
  • Light Point- Pendant Holder (6 inches).
  • Light Point- Batten Holder.
  • Fluorescent Strip Light.
  • TV Aerial Point.
  • Immersion Heating and also Thermostat.
  • Mechanical ExtractFan.
  • Door Bell Push.
  • Door Bell Chime.
  • Thermostat.
  • Safety Alarm.
  • Customer Unit.
  • Telephone Point.
  • Cat 5 or 6 Data Socket.
  • CookerSwitch.
  • Mechanical Extract Fan (Cooker hob hood).
  • combined heat Detector and Fire Alarm Sounder.
  • CombinedSmoke/Heat Detector and also Fire Alarm Sounder.
  • AudioSpeaker.
  • Radiator.
  • CAT 5E.
  • 2 Core Speaker Cable.
  • Underfloor Heating Manifold.

CAD Electric Drawings Totally Free Download

Download And Install the Electrical CAD drawings and blocks totally free( readily available in PDF and also DWG):
https://www.arcat.com/content-type/cad/electrical-26
https://www.linecad.com/cad-drawing/electrical/

Download the AutoCAD Electric Icons Collection (demonstration):
https://electrical-symbols-library-for-autocad.apponic.com/
