Guide to Milling Cutter

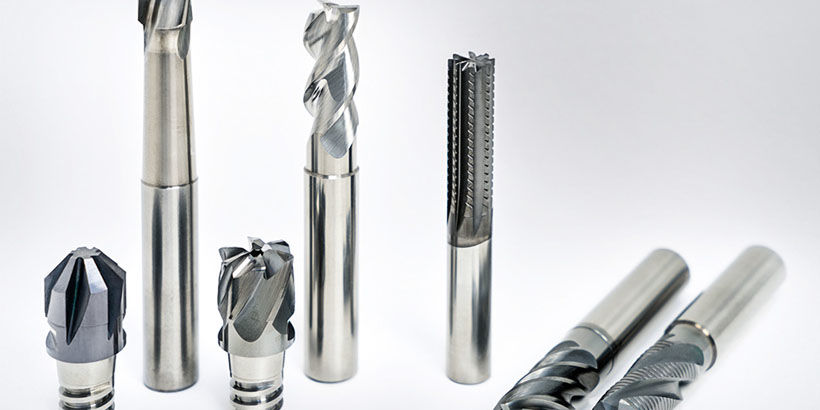

Guide to Milling Cutter

The milling cutter is the necessary tool for machining on CNC mills, it’s advisable to find out the kinds as well as features of various cutting tools and pick an ideal one, for conserving cost and also improving effectiveness. DEK brings what is a milling cutter, its types as well as ideas for the CNC cutting tool option.

What is Milling Cutter?

A milling cutter is a rotary cutter with several teeth for milling. In the milling procedure, the cutter teeth cut off the allocation of the work surface subsequently as well as intermittently. It can be found in cylindrical form, with a cutting edge at the circumference and bottom, to cut the work surface by turning. The milling cutter is mostly utilized for machining aircraft, action, groove, developing surface and cutting a workpiece on milling machines as well as CNC (computer system mathematical control) mills.

Mill Cutter Kind & End Milling Cutter

Mill Cutter Kind & End Milling Cutter

There are many types of milling cutters. Next off, we’ll largely introduce the end mill cutter. The general milling cutters (CNC milling cutters) can be divided right into the list below types:

  • Face milling cutter: made use of to machine aeroplane on a vertical milling machine, end face milling machine or gantry milling machine. There are cutter teeth at a time face and area, its framework includes integral type, decorated type and rotatable kind.
  • End mill cutter: utilized to process grooves, action surfaces, and so on, when the cutter teeth are on the circumference as well as end face, it can’t be fed along the axial direction. When the completion milling cutter has an end tooth travelling through the centre, it can be fed axially.
  • Plain Milling Cutter: also called Surface area Milling Cutter or Piece Milling Cutter, made use of to mill flat surfaces, its axis alongside the surface being grated.
  • Cylinder milling cutter: utilized to devise an aeroplane on a horizontal milling machine. The cutter teeth are distributed on the circumference of the milling cutter According to the tooth shape, they are split right into straight teeth and also spiral teeth. Spiral vast tooth milling cutter has fewer teeth, high stamina, the area for consisting of chips is large, appropriate for harsh machining. Side Milling Cutter is likewise a cylinder milling cutter.
  • Angle milling cutter: consisting of a solitary angle milling cutter as well as a double angle milling cutter.
  • Sawmilling cutter: several cutter teeth on the area of deep groove and cutting workpiece, there are 15 ′ ~ 1 ° second deflection angles on both sides of the cutter teeth.
  • T-slot milling cutter: utilized to mill T-groove
    There is likewise Kind Milling Cutter, Fly Cutter, Inserted Tooth Milling Cutter, Hollow mill, Ball mill cutter, Involute gear cutter, Woodruff cutter, String mill cutter, Hobbing cutter and also various other different types of CNC grating cutters.

Spiral groove end milling cutters are identified as left-hand or right-hand cutters depending on the direction of turning of the flutes. The left-hand milling cutter is typically a kind of cutter selected under the need of high-precision handling, normally utilized to produce the phone secret, membrane layer switch panel, LCD panel, acrylic lens and also other ending up handling.

Tips for CNC Cutting Tool Selection

The choice of cutting tools need to be based upon the machining ability of machine tools, the efficiency of work surface materials, refining procedures, reducing specifications and other factors. The general concept of the CNC cutter option is practical installation and change, excellent rigidness, high durability and accuracy. Attempt to select a much shorter device handle to enhance the rigidness of the machining.

  • The carbide cutter can be made use of to mill the aeroplane.
  • The high-speed steel end mill can be made use of to machine bump and concave.
  • A helical milling cutter is a perfect choice for machining blank surface area or harsh machining opening.
  • The size of the cutting tool ought to be suitable for the surface dimension of the machined parts to be processed.
  • The end milling cutter is usually made use of to process the peripheral shape of aeroplane components.
  • For the machining of strong account and variable angle account, ball-end milling cutter, ring milling cutter, conic milling cutter and disc milling cutter are often used.

As a professional precision machining vendor, long-lasting and also correct cutting tools at DEK‘s disposal for providing more efficient CNC milling services.
