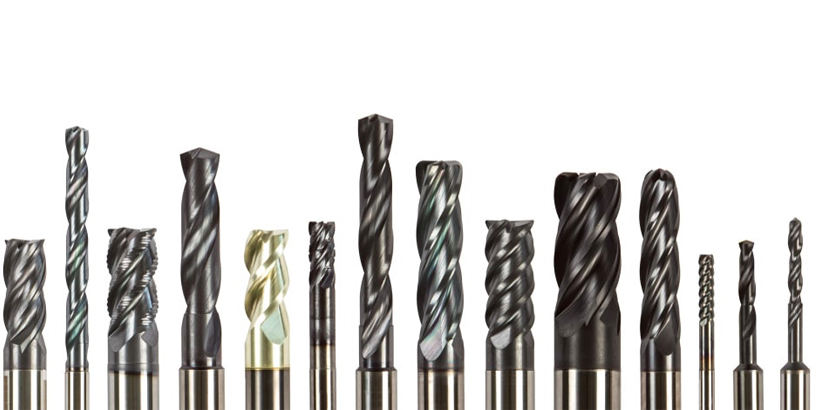

The Overview of Drill Bit Option

The Overview of Drill Bit Option

Just how to choose the appropriate drill? For obtaining the best outcome, you need to pick a drill bit giving proper chip clearance, good surface area finishes, and also exact opening settings. Recognizing the fundamentals of drill little bit choice entails material, coating, as well as geometries to make the very best selection.

There are a number of types of drills designed for different functions. To divide one drill bit from an additional, you need to assess the difference between them. Drills can be made from varying materials as well as apply several finishing, or come in different geometries. Select the drill bit based upon the product of CNC drilling parts to be machined and also attributes of the tool.

Material

A drill bit is generally made from high-speed steel, high-speed steel with cobalt or carbide.

  • High-speed steel: one of the most basic drill products, it is affordable and can be utilized in the drill press and also hand drilling operations, resharpening the drill can extend its lifespan.
  • High-speed with cobalt: holds up much better than high-speed steel and also even more heat and wear-resistant, easy to resharpen.
  • Carbide: one of the most costly materials, however, it can last the lengthiest time, additionally provides the best warm and also chip resistance, and allows for coolant with holes. Regardless of the rate of carbide is a lot more than various other products, the cost for boring per hole normally is the lowest when utilizing carbide drill, because it can create even more openings than cobalt as well as can running 3 to 5 times quicker. The drill bit is primarily utilized for producing deeper openings or working with tough-to-drill products.

Coating

  • Bright coating: the cheapest covering, commonly put on drill low-carbon steel and aluminum workpiece.
  • Black oxide: more lubricity than the intense surface, immune to oxidation, applying warm treatment procedure will certainly boost its service life.
  • Titanium nitride (TiN): a very tough ceramic product and also brilliant gold coating put on metal surface areas, the most common option, ideal for applications and novices where great deals of heat will not be moved to the tool from reducing more difficult or harder products.
  • Titanium carbonitride (TiCN): has the highest lubricity of all the TiN coatings, with improved solidity and use resistance, as well as much better performance. It’s commonly blue or purple in color.
  • Titanium aluminum nitride (TiAIN): represents a group of metastable tough layers, a terrific choice for steel and stainless steel, however not ideal for piercing lightweight aluminum. It has greater efficiency than TiN as well as TiCN, superb for high-temperature products.

Generally, TiN coated drills are common options for mild steel, TiCN layered drills are excellent for cast iron, and TiAIN covered drills are advised for high-heat applications. A top-notch cobalt drill with a TiN or TiCN covering is a fairly cost-effective means to obtain greater efficiency unless cutting difficult materials.

Geometry

  • Length: there are 2 typical screw equipment sizes, described as “stub” length as well as “jobber” length. Stub length drills are widely used on CNC machining due to their high strength, which can make an extra exact opening placement, the shorter the little bit, the more stiff the drill is. Make sure you have sufficient flute sizes to obtain the chips out of the hole, 2 times the drill size in groove size over the hole is the best.
  • Drill PointAngle: you can choose from various drill point angles, 2 typical kinds are 118 ° and 135 °. The 118-degree drill is more suitable for moderate steel, aluminum, and also various other soft metals, it’s usually on jobber size. The 135-degree drill is typical with stub size and utilized to drill hard steels, and also various other tough materials.
  • Helix Angle: helix in 30-degree is used for piercing most products. There are likewise drills with helix angle 10 degrees, which is recommended for tougher steels, aluminum alloys; and also bigger choice 40-degree helix angle is designed for hard products.
  • Self-centering points: numerous cobalt, as well as carbide drills, have it, so it does not require to identify drill with cobalt and carbide.
