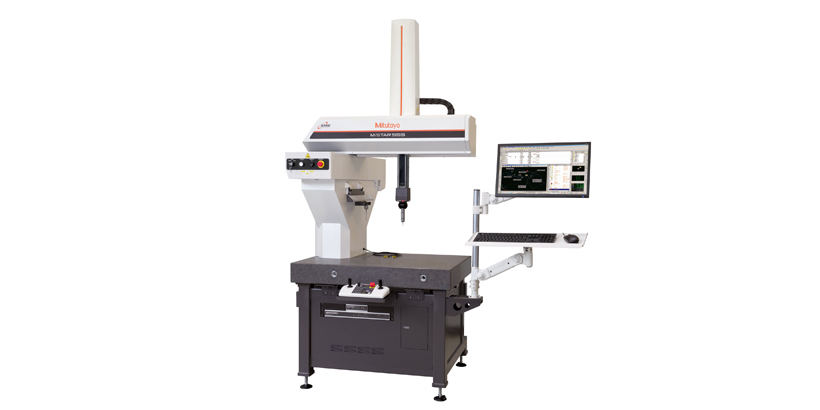

Guide to Coordinate Measuring Machine

Guide to Coordinate Measuring Machine

For a lot of dimension employees in the CNC machine shop, the coordinate measuring machine (CMM) is not strange. DEK utilizes our CMM machines every day to take the examination and also confirmation on products from CNC machining as well as various other procedures, for seeing to it each part is produced in the right measurements and geometries. This is one of the approaches we accomplished to ensure our items are qualified and also meet the customer needs. Follow us to discover what is coordinate measuring machine and exactly how does it functions, plus the types of CMMs and Applications.

CMM Definition

A coordinate measuring machine, likewise called CMM, is a tool that uses a sensitive electronic probe to measure the geometry of physical components by picking up discrete factors on the surface of things. If the component is adhering to the required specifications, the purpose is to evaluate. A coordinate measuring machine is normally made up of the main framework (consists of Y, x as well as z axes), probing system, data collection, and also decrease system. A mix of granite and also aluminum is the extensively utilized material of CMM as a result of the tightness to weight ratio. There are lots of sorts of probes that can be made use of in CMM, like a mechanical, optical, laser as well as white light. The position of probes can be regulated manually or immediately (CNC). CMM can offer accurate examination results for complicated components quickly.

Just how Does a CMM Job?

3 axes (X, Y and also Z) create the coordinate system, the CMM machine typically defines the position of a probe according to its displacement from a reference set in the three-dimensional Cartesian coordinate system, as well as relocate the probe along the 3 axes. Each factor on the part is unique to the coordinate system of the machine.

Kinds Of CMM

Before choosing a CMM machine, you require to find out about the various kinds of measuring machine. All CMMs have three orthogonal axes, Z, y and also x, however in differing frameworks.

Cantilever CMM Machine

Cantilever machines are generally made use of for the dimension of fairly little components, and determines, master parts as their high precision and also low dimension unpredictability, supplying open accessibility to the operator on three sides. The X-axis measuring light beam is attached on the side of a rigid framework housing the Y-axis, which limits the size of the X light beam. A big assistance base with low weight allows the cantilever collaborative measuring machine to move fast. The cantilever type device also has a good capacity for automated loading as well as discharging.

Horizontal Arm CMM Machine

Horizontal Arm type device has a different arrangement where a vertical column (X-axis) and a horizontal arm (Z) placed on a saddle that runs vertically up and down the X-axis. Horizontal arm CMM uses a reduced accuracy than the 3 above CMMs, but it is useful for gauging huge surfaces or challenging to get to features consisting of large thin-walled/sheet-metal type components mounted in components that stand for vehicle body placement, like automobile door.

Bridge CMM Machine

The normal 3D bridge CMM machine permits the probe to relocate along Y, x as well as z, which are orthogonal to each various other, each axis has a sensor for monitoring the probe set, typically with micrometre accuracy. Bridge devices provide far better accuracy than various other types of coordinate gauging machines and also have a reduced price and also capacity to maintain accuracy and also repeatability.

Gantry CMM machine

Gantry kind coordinate measuring machines have comparable structures to bridge machine, however, it’s largely used to measure hefty and also large parts. Many gantry machines are straight installed on the flooring, which is risk-free configuration enables the developer to conveniently stalk the component and also make the procedure more easily. The driver can access the machine unrestricted, make small features that can be determined carefully. In addition, the surface area layers for smaller elements are quickly inserted right into the gantry maker, decrease the trouble of measurement and also intricacy.

Application of CMM

Application of Coordinate Measuring Machine

Modern coordinate measuring machine can not just full numerous type of complicated dimension under the control of the computer system, however also can control the machining by exchanging details with CNC machines, and realize reverse design according to the dimension data. CMM has actually been commonly utilized in the dimension of the machined components and also accessories applied in mechanical production, automobile, electronic devices, aerospace, armed forces and also device, furnishings, and also defence prototype; package, frame, equipment, cam, worm wheel, worm, blade, curve, curved surface, and much more in moulding market; as well as equipment, plastic and various other areas to measure the placement, form as well as size resistance of the work surface, so as to complete the parts examination, form dimension, and procedure control, it’s the important measuring tools for modern accurate assessment as well as quality control.
