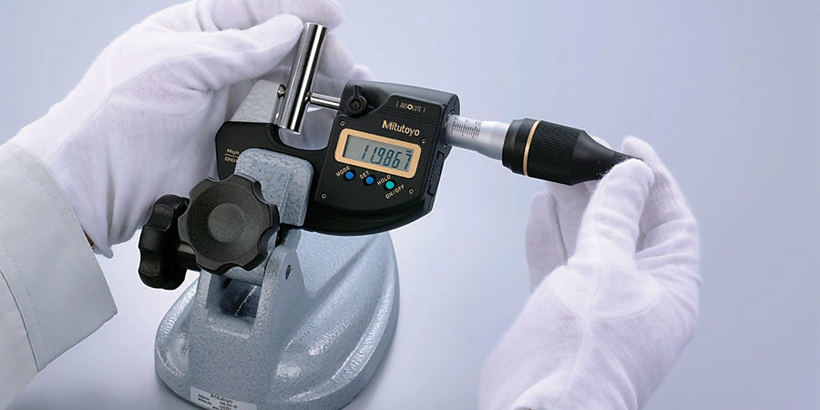

Guide to Micrometer
Precise measurement is essential for the accuracy of CNC machined parts, the micrometer is a common measuring tool for mechanical parts. In this post, from the meaning of micrometer, follow us to learn more about the types and also standard parts of a micrometer, more significantly, quick to get the micrometer reading and measuring technique.
What is Micrometer? – The Interpretation of Micrometer
A micrometer, additionally known as the micrometer screw scale, is an accurate measurement tool with a calibrated screw mostly used to measure small ranges or density in between 2 faces of the mechanical engineering and machining parts, it is frequently utilized together with other atmospheric instruments like dial, vernier, and electronic calipers. A micrometer is likewise a useful device for obvious diameter measurement of celestial objects or tiny objects in telescopes or microscopic lenses.
Kinds of micrometer
– Outside micrometer: made for gauging the beyond things– the outside diameter (OD).
– Inside micrometer: measure the within, or inside size (ID).
– Depth micrometer: measure the deepness of a hole, recess, or slot.
What are the Parts of a Micrometer – Micrometer Elements
Discover the construction and also a system of the tool for far better understanding as well as proper use of a micrometer. The main parts of a micrometer with its function are as below.
- Anvil: fixed cylindrical part, one of both holding points for objects to be gauged.
- Spindle: portable cylindrical and lengthy part connect with cog, an additional holding factor, to fit the size of the part.
- Locknut: jobs as stationary nut, hold the system firmly as well as stand up to loosening up under vibrations as well as torque.
- Zero adjust screw: proper or adjust the absolutely no mistake.
- C-frame: a c-shaped structure, functions as a stiff part with both holding or repairing factors (anvil and also sleeve).
- Sleeve: with the main range, shows the reading in millimeter in case of the imperial micrometer.
- Thimble: with a rotating vernier range, reveal the dimension worth infraction.
- Knurled Complaint.
- Ratchet: limitations applied pressure by slipping at a calibrated torque.
Exactly how to Review a Micrometer – Micrometer Analysis
There is not just one method to review micrometers.
- Inspect whether micrometer in English or statistics, make sure the tool makes use of the same device as the measurement device.
- Rotate your micrometer into an appropriate placement as well as determine the object.
- Check out the largest number and also count the number of quarters revealed on the sleeve first, then reviewed the number is lined up with the information line on the thimble. Finally, total these 2 numbers. The sleeve can be considered a leader with 10 numbers, as well as the area between each number, is divided right into quarters. One the sleeve, 1 corresponds to.100 inches, one quarter implies.025 inches; while on the thimble, each line amounts to.001 inches, for instance, 11 reads as 0.011 inches.
( You can think about the markings on the sleeve as bucks as well as quarters, 1 implies one buck, and also a quarter implies 25 cents. And also the numbers on thimble present cents, 10 indicates 10 cents. Transform the final result to inches, such as 2 dollars 35 cents is 0.235 inches. ).
How to Make use of a Micrometer – Micrometer Measurement
- Hold the micrometer in your dominant hand, sustain the gadget weight in your hand.
- Comprehend the thimble in between your thumb as well as index fingers.
- Partially cover your pinky or ring finger within the inside of the frame, do not block the challenge be determined.
- Hold the component to be measured in another hand.
- Carefully pinch the item between the anvil as well as the pin.
- Twist the ratchet until the object is held firmly.
- Review the micrometer.
