Guide to Using Textures to Injection Molding Tools

Guide to Using Textures to Injection Molding Tools

Surface structures, as well as patterns related to plastic injection, built components are coming to be more sophisticated and complex. Since they offer so numerous brand-new layout choices for item programmers and designers, these improvements are amazing. Yet before a finished component can be made, the injection molding device has to initially be thoroughly produced. So exactly how do suppliers use distinctive surface areas in a regulated and repeatable fashion to obtain the results that designers anticipate?

Let’s go over the 5 most common approaches. They are EDM spark erosion, chemical photoetching, polishing and sanding,  laser etching, and also media blasting.

EDM Spark Erosion

EDM (Electric Discharge Machining), likewise called trigger erosion, makes use of a graphite or copper electrode put in an electrolytic bath of water or oil. When the electrode reaches a limit existing, it sparks versus the tool wall surface. The target thaws yet are instantly appeased by the surrounding electrolyte. This results in a thermal shock that creates the metal to piece right into tiny particles are that flushed away. Every one of these happens in a little fraction of a second.

Spark disintegration works with tough and also soft steels alike and can generate really tight tolerances. It’s optimal for making deep thin slots, sharp concave edges, debossed text and other features that would certainly otherwise be hard or impossible to make conventionally. Additionally, a really great and smooth finish can be accomplished, which removes lengthy as well as expensive hand polishing.
Big EDM electrodes were once utilized to use a textured surface on mold devices, what was known as a “stimulated surface”, however, this technique has actually largely been changed with chemical etching. All that remains is the name.

Chemical Photoetching

Chemical Photoetching

Several plastic components are developed with innovative in-moulded patterns and also textures. Some imitate the appearance of natural leather, timber or stone grain, while others generate more abstract geometrical styles. But how are these patterns put on a mold tool? This is done by photoetching.

The device wall surface is covered with a photoresist, which is a light-sensitive chemical. The desired pattern is then projected onto the tool surface area with a UV light, where any locations touched by the light are treated.
Next, the mold is positioned in an acid bath that engraves away the unsafe areas thus creating the preferred structure. The process must be thoroughly controlled to account for the type of base metal, the complexity of the style as well as the depth of surface infiltration triggered by the acid.

The etching doesn’t work on undercuts or other locations where the optical line-of-sight is obstructed. And also patterns can obtain geometrically distorted over big, curved surface areas.

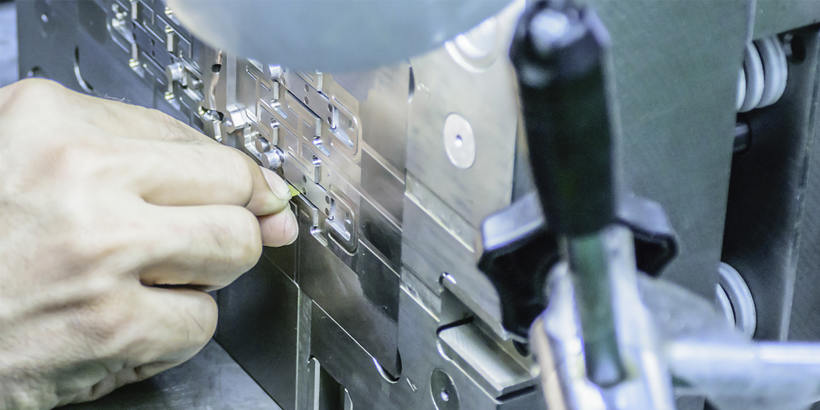

Sanding and Polishing

Rough machining always leaves behind some device marks on the work surface. Unless corrected these marks would after that obtain transferred to the item upon molding and obviously that’s unfavourable.

Sanding and also brightening eliminates these marks and also other minor surface imperfections. This is done by competent specialists making use of a variety of rotary tools, diamond burrs, sandpapers, documents as well as other abrasives. The structures they can produce range from mirrored surface areas to coarsely grained or anything in between. Yet note that hand polishing produces an international effect, not a specific duplicating pattern or noticeable cosmetic style.

Sanding takes ability and a level of artisanry, yet specialists aren’t able to gain access to deep pockets or really thin sections. Likewise, they should take care not to exceedingly modify the dimensional tolerances of the mold.

Laser Etching

It’s currently feasible to map almost any appearance onto any kind of bent surface with laser etching. The success of this process depends upon combining two modern technologies.

The initial is 3D computer system modelling. This lets a designer take a map of the texture and straighten it with the contours of nearly any type of moldable form, using sophisticated formulas to maintain the layout’s geometry.
The second innovation is 5-axis motion control. This assists the laser in accurately track over the surface area geography while also getting to undercuts and various other areas, not in the line of sight.

Laser etching prevails in the auto area, where larger kinds, like a dashboard, require to have patterns that preserve their consistency over a long size. It’s a lot more pricey than various other methods and also it requires time to produce the essential 3D CAD designs but for one of the most requiring applications, this is really the means to go.

Media Blasting

High-pressure air is used to spray various types of damp or completely dry rough media against the device wall. The kind of media utilized, as well as the air volume, spray as well as pressure pattern figure out the completed look.

Blowing up is rapid as well as affordable and consumes little raw material. An additional advantage is that it can be managed by proficient operators so a matte-finished area can nest up against a distinctive pattern with no overlap or interference in between them.
