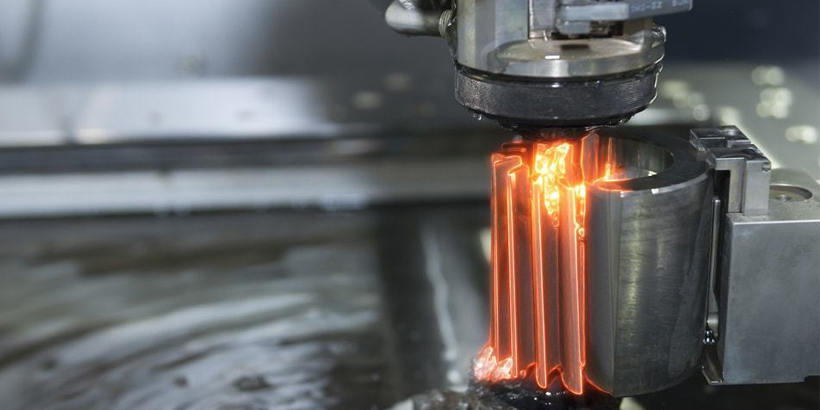

Guide to Wire EDM

Guide to Wire EDM

In modern-day CNC machining, there is a unique manufacturing procedure – wire EDM, which is various from turning as well as milling operation, its reducing device does not need to touch the product when forming the steel. Exactly how does cord EDM work? In this short article, we’ll discover the wire electrical discharge machining procedure from several elements.

What is Wire EDM?

EDM (Electric discharge machining), likewise referred to as spark machining or spark eroding, is a manufacturing process of creating a wanted part from the metal sheet by utilizing electric discharges (sparks). There are 3 types of EDM: Sinker EDM, Wire EDM, and Rapid hole drilling EDM. Wire EDM, also known as wire electrical discharge machining (WEDM) or wire-cut EDM, entails using a thin single-strand steel conductive wire, like brass, together with deionized water enables the cord to puncture steel with the heat from electrical sparks.

The working principle of Wire EDM

In Wire EDM machining, the material is eliminated from the work surface by a collection of swiftly reoccurring current discharges in between the electrode or the wire and the workpiece, they are separated by dielectric fluid. Wire EDM can easily reduce tough conductive material and also produce intricate parts with high precision. The dielectric is utilized to stop short circuits in the sparking procedure as well as eliminate the waste material.

Application of Wire EDM

Application of Wire EDM

Wire cut EDM machining is an excellent choice for the manufacturing of small, delicate items. It can additionally be made use of for many various other applications consisting of automotive, aerospace, electronic devices, and also extra sectors.

  • Mold as well as pass away production
  • Complicated steel components and also tools
  • Fast model as well as full manufacturing run
  • Applications call for reduced degrees of residual stress and anxiety
  • Little, very detailed parts
  • Small opening drilling
  • Steel fragmentation machining
  • Closed-loop production

Advantages of Wire EDM

Wire EDM is a computer system mathematical regulated machining process commonly utilized as the favored selection for lots production requires its high flexibility and also one-of-a-kind advantages. As the non-contact procedure, there is no straight strong reducing pressure used on the item, so the surface area high quality of the components will certainly not be impacted during the cutting, which minimizes the need for post-processing treatments.

  • Can collaborate with hard products as well as produce little as well as detailed components.
  • Easier to acquire a smooth surface coating without getting in touch with between tool and also a component
  • Uses a relatively portable office
  • Accurate, foreseeable, and also repeatable
  • Can satisfy the limited tolerance needs in low quantity production
  • Cost-effective and also very efficient

The Distinction Between Wire EDM and Sinker EDM

Wire cut EDM as well as sinker EDM both employ the concept of electrical discharge machining, what are the differences between them?

  • In wire EDM, a long slim wire made from conductive metal is made use of as the cathode, while in sinker EDM, there is frequently a die in any type of forms made of conductive metal made use of as the cathode.
  • Wire electric discharge machining is suitable for two-dimensional cutting but bad creating 3D shapes, the die of sinking EDM might be found in a complicated 3D account, which allows it to develop detailed forms.
  • Wire EDM machining can cut through the product completely, while sinker EDM services are unable to reduce totally. This means that the sinker EDM can fabricate items with blind functions.
  • Sinker EDM can begin reducing at any kind of location on the work surface, while wire EDM requires the maker of the parts from the sides.

DEK is not only the leading CNC machining services China supplier, yet additionally efficient wire EDM machining technique and with the ability to offer you accuracy cord EDM gets rid of affordable prices as well as achieving your function needs.
