Nuts Overview-7 Common Lock Nuts

Nuts Overview-7 Common Lock Nuts

A lock nut is a unique type of nut that won’t loosen up also exposed to vibrations, according to the various applications, a vast array of lock nuts come in different styles. Here we’ll review the types of lock nuts and also how lock nuts work. For stable framework as well as greater safety, DEK offers high-quality metal cam lock nuts utilized in the lock installation.

What is Lock Nut?

A lock nut, additionally referred to as a locknut, locking nut, and also self-locking nut is a kind of bolt that is made use of to protect bolted joints as well as resist loosening under vibration and also torque. After inserting a bolt with the items, a lock nut can be turned onto completion of the screw (from the backside of the object), in conjunction with the screw, and also safeguard the whole part. The lock nuts can avoid making use of the friction either loosening or some positive locking gadget, depending on its structure as well as products. The installment treatment is basically like typical nuts.

Exactly How Does Lock Nuts Function?

Unlike standard nuts which only have a standard threaded hole, the lock nut typically includes a one-of-a-kind design that stays clear of the nut loosening from the screw where they are put when under resonances. There are various ranges of locking nuts, such as the steel nut, which employs steel to create rubbing, as well as the nylon insert lock nut, which integrates a polymer in the design against loosening up. When a nylon lock nut is placed on a bolt, the nylon fibers expand to hold the bolt. The metal lock nuts function to safeguard the screws in different means.

Different Sorts Of Lock Nuts

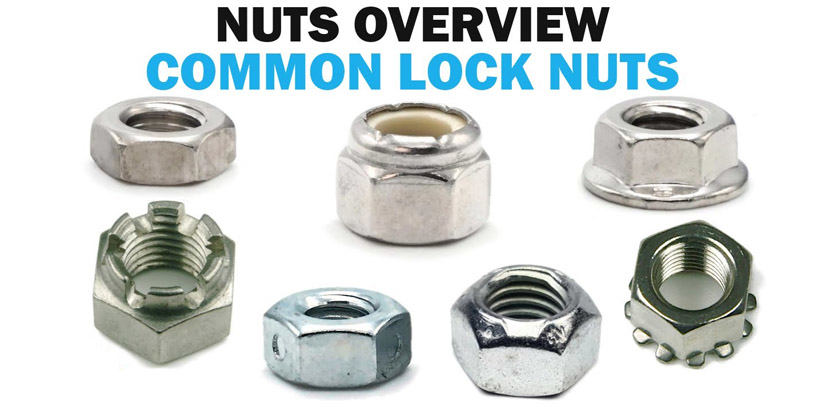

One of the most typical lock nuts kinds are metal lock nuts and also nylon insert lock nuts The metal lock nuts can be split into even more various ranges. Below we detailed the common types of lock nuts with numbers you can identify them more easily.

Dominating torque securing nut (Stover lock nut)

It has a securing system that’s developed into the cone, as you put it on, it begins to imitate a securing nut, its self-contained attribute creates frictional disturbance between the strings of the mating elements. When attaching a prevailing torque lock nut, there is a resistance to rotation throughout both assembly and also disassembly needing them to be dragged; that resistance is called dominating torque. They can be changed or removed after installation.

Hex jam nuts

Hex jam nuts

The jam nut is usually utilized with an additional nut together, you ought to tighten them up against each other, that’s why they called jam nuts and how they work. They can likewise be made use of in a limited location where a full-sized nut can not be completely placed.

Two-way lock nut (Center lock nut)

There is a little mark in the middle placement outside of the nut, virtually like a strike right in the center, that shows it’s a two-way nut, as the name suggests, this type of nut is locking in two means, whether you place it on or off, once you start to mess up to that size, it will start to lock. Both Stover lock nut, as well as two-way lock nuts, use altered strings to keep the nuts from loosening. The difference is that the altered thread of Stover nuts is at the top and two-way nuts have it situated in the center.

Keeps K-Lock nut

K-Lock nuts have little wings around, which is movable, it’s a free-rolling washing machine lock nut, when the wings obtain tightened, note not to over tighten it, due to the fact that when you over tighten the nut, it’s no longer a lock nut, and that cost-free rolling washing machine obtains crushed, it does not benefit you any longer.

Serrated Flange lock nut

This lock nut has an important flange constructed right into it and the backside is serrated, commonly utilized in applications where you have some sort of steel sheet or something that has metal. After you tighten it down, the serrations will certainly avoid it from withdrawing.

Nylon insert lock nuts

Nylon insert lock nuts

This kind of lock nuts have a layer of nylon insert inside of the nut, when you placed the screw through, it starts to string the nylon, then it puts pressure on the screw as well as prevents it from vibrating loosened and also diminishing. The nylon insert nut includes an internal nylon washing machine or spot, the enhancement of non-metal product makes the nut much more conscious of temperature as well as chemicals. To install the nylon insert lock nuts, a tool is called for.

Castle lock nut (Castellated nut)

Castle lock nuts are a kind of nut with slots cut into one end, normally made use of in low-torque applications, such as holding a car wheel bearing in place, you can discover them on axles when they hang on wheels as well as bearings.

Summary

A lock nut is a special kind of nut that won’t loosen up even exposed to resonances, according to the numerous applications, a vast range of lock nuts come in different layouts. A lock nut additionally referred to as a locknut, locking nut, as well as a self-locking nut, is a kind of fastener that is made use of to secure bolted joints and also withstand loosening under resonance as well as torque. There are various selections of locking nuts, such as the steel nut, which employs steel to develop friction, and also the nylon inserts lock nut, which incorporates a polymer in the layout versus loosening.

There is a small mark in the center position on the exterior of the nut, practically like a punch right in the center, that reveals it’s a two-way nut, as the name suggests, this kind of nut is securing in two methods, whether you put it on or off, once you start to screw up to that dimension, it will begin to lock. Both Stover lock nut and two-way lock nuts use distorted threads to maintain the nuts from loosening up.
