Summary of 303 Stainless Steel

Summary of 303 Stainless Steel

Stainless steel is a functional material that is available in numerous qualities as well as alloys that vary in residential properties and attributes. When making stainless-steel machined parts for various sectors, we need to find out about its attributes and machining problems. In this article, let’s present what is 303 stainless steel, SS303 mechanical as well as physical buildings, along with the most effective quality of stainless steel for machining.

What is 303 Stainless Steel?

303 Stainless steel, likewise known as UNS S30300 and SS303, it’s a non-magnetic, austenitic stainless steel. Take an appearance at the make-up of 303 alloys, 17% -19% Cr, 8% -10% Ni, ≤ 0.15% C, ≤ 1.00% Si, ≤ 2.00% Mn, ≤ 0.20% P, ≥ 0.15% S, as well as ≤ 0.6% Mo, which gives stainless steel 303 cost-free machining attributes, good mechanical as well as deterioration resistant residential properties.

Stainless-steel 303 Properties and Application

Stainless Steel grade 303 has excellent resistance to slightly corrosive environments (less than SS304) and good oxidation resistance at temperature levels approximately 1700 ° F. Alloy 303 goes through rust breaking in chloride atmospheres above 60 ℃, as well as in the humid aquatic setting, it is very easy to struggle with rapid matching rust as well as simple to develop corrosion movie. When it concerns processing, 303 is not appropriate for welding yet one of the most readily machineable of all the austenitic qualities of stainless steel.

Physical Features of SS303

Thickness of 303 Stainless Steel: 8.03 kg/m3 (0.289 lb/in ³).
Electric Resistivity: 0.72 x 10-6 Ω.m.
Melting Factor: 1400- 1420 ° C.
Modulus of Elasticity: 193 GPa (28000 ksi).

Mechanical Features of SS303

Rockwell C Hardness of 303 Stainless Steel: 19.
Vickers Solidity of 303 Stainless steel: 240.
Brinell Hardness of 303 Stainless steel: 228.
Ultimate Tensile Stamina of 303 Stainless steel: 690 MPa (100000 psi).
Return Tensile Toughness of 303 Stainless Steel: 415 MPa (60200 psi).
Elongation at Break: 40%.

Stainless-steel 303 Properties and Application

The applications of 303 stainless steel

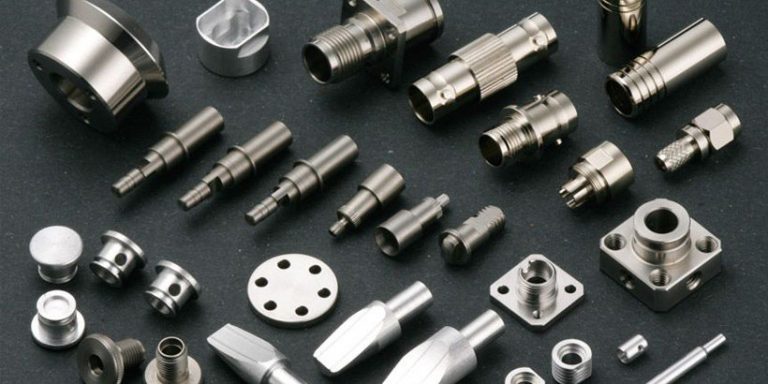

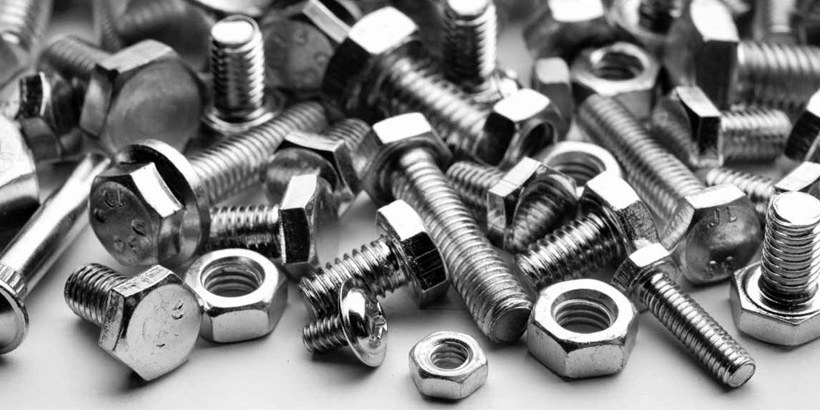

Based on the properties and also functions of UNS S30300, the alloy needs to not be subjected to a damp aquatic atmosphere and it’s not advised to use it constantly at temperatures above 1400 ° F, which would cause irregular scaling. As an engineering product, stainless-steel 303 is typically made into nuts, bolts, screws, fasteners, shafts, airplane fittings, electric elements, equipment, auto, aerospace, various other parts, and also medical tools making use of CNC machining services, including stainless-steel milling, stainless-steel transforming, and stainless steel drilling.

The best Stainless-steel Grades for CNC Machining

Different make-ups lead to different stainless steel kinds appropriate for differing processing methods. When do you want to choose stainless steel for reducing with CNC machines, which one is the most effective option?

The first thing we ought to know is the machinability of different stainless steel alloys. The existence of sulfur as well as various other chemicals can assist the CNC machining procedure.

Many sorts of stainless steel can be machined on turrets and mills, yet it also has obstacles, for example, stainless is vulnerable to work settings. For the best stainless steel grades for machining, alloy 303 is an instance of austenitic qualities of stainless steel as well as the most free-machining of all chromium-nickel types. Amongst the ferritic stainless-steels, 416 is the most easily machineable because of the addition of sulfur as well as phosphorus. There are likewise quality 430 and also 410 are highly machinable.
