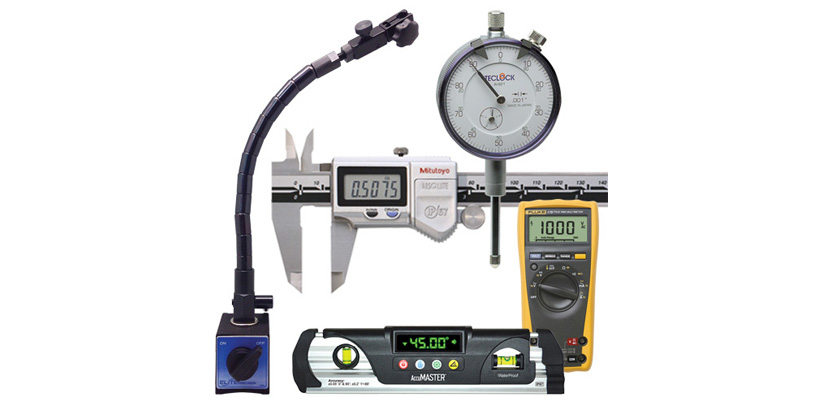

TOP 11 Essential Machinists Tools

TOP 11 Essential Machinists Tools

If you are going to become a novice machinist, the right tools will certainly make sense in getting started promptly and also smoothly. Below we placed the advised must-have machinist devices for CNC machining shop or manual work.

Micrometers

A micrometer, also called a micrometer screw gauge, is a gadget including an adjusted screw commonly used for accurate measurement of mechanical design as well as CNC machined components, consisting of the diameters, density, size, and other dimensions. Take a look at our post for an overview of micrometers including just how to check out a micrometer, micrometer definition, elements, and also dimensions.

6 ″ Scale (Ruler)

6 ″ scale ruler is a device to determine lengths as well as move dimensions at a fixed proportion of size, it may be one of the most secondhand tools for each type of work, determining components manufactured in various other functions and various procedures. Several versions are readily available on the market.

Machinists hand tools

Some typical hand tools you can consider:

  • Metric & Standard Allen Wrench set (hex secret): made use of for driving screws and also screws with a hexagonal outlet.
  • 12 ″ Crescent Wrench (adjustable wrench): with a one taken care of jaw, while the second jaw can move left or right, generally made use of when resolving troubles such as a loose seat on a bike.
  • Ball-peen hammer (machinist’s hammer): a great alternative for collaborating with metal, made use of to drive chilly knives, established rivets, and also bend and shape steel.
  • Soft hammer: bend and shape metal without triggering surface area damage.
  • Automatic Center Punch: made use of to note the facility of a factor, such as a hole facility in boring.

Calipers

The caliper, suggested by nearly every machinist as well as related short articles, is an essential machinist device utilized to gauge the accurate range between two opposite sides of a thing. To gauge the item, adjust the caliper suggestion to fit the point to be gauged, then eliminate the caliper and also measure the distance between the tips utilizing a gauging device such as a leader.

Edge Finder

Edge Finder

Edge finder, likewise referred to as wiggler, wobbler, laser-centering-device, or center-finder is a tool made use of in or on a maker like a mill, to accurately align the machining tool with the center, sides, design markings, or already machined features of the work surface throughout the set-up stage throughout machining or other operations. Side finders are also acting well in zero settings on CNC machines, they are typically held in a collet, end mill owner or chuck mounted in a mill or boring device pin.

Dial Indication

Dial indicator is a sort of scale, additionally called dial examination indication, dial gauge, or probe indicator, is an instrument that provides a dial display screen with clock hands similar to a clock face, made use of to measure small linear ranges. Dial sign is a functional tool with a wide range of uses, such as to gauge deck clearances, crankshaft thrust and straightness, lifter travel, or settle your vice with the maker axis, enables you to get a trustworthy dimension distance, the most usual dial sign reads in.001-inch increments over a range of 1 inch.

Combination Square Establish

A mix square collection is a measuring tool created to determine angles as well as lengths and also offers for woodworking, metalworking, construction job, as well as more objectives, it is composed of a ruler as well as one or more interchangeable heads that might be attached to it, the frequently made use of head is the common or square head, which is made use of to set out or check ideal and also 45 ° angles. It additionally can be made use of to find the fixate the ends of shafts. A great 6″ or 12″ combination square is a great option.

Calculator with Sine, Cosine & Tangent

A standard machinist’s hand device you ought to have in your toolbox. A scientific calculator is most made use of for trigonometry and exercising your feeds and speeds. Select any calculator or small affordable Windows-compatible laptop.

Deburring Tool

The deburring tool is utilized to eliminate burrs and other defects from the external and also internal surface area, opening sides, edges of narrow slots, and also more areas created in the machining as well as cutting process, it’s likewise valuable when rounding out rough edges and removing babble marks, more convenient as well as much faster than utilizing a file.

End Mill Starter Set

An end mill is a type of milling cutter utilized for the milling process. End mills from the drill bit in its geometry, application, and also manufacture, can be made use of to make numerous forms as well as holes in varying sizes, in addition to profiling, contouring, slotting, boring, reaming, etc. The end mill starter package consists of devices in different specifications, without it, you can not finish lots of operations in machining.

Gage

  • Telescoping gauge: a determining device with spring-loaded dives utilized along with a micrometer to measure the within bores or holes.
  • Radius gauge set: utilized to gauge the distance of an object.
  • Center gauge: utilized in lathe benefit inspecting the angles when grinding the accounts of centers.
  • Feeler gauge: used to check to space and also spaces of passes away or any machinery during set-up or fixing as well as critical clearances of produced parts.
  • 1″ gauge block: used as a reference for the calibration of gauging equipment utilized in the factory, such as micrometers, sine bars, calipers, as well as dial signs.

In addition to these, there are several devices made use of in the machine shop, such as files, anti-fatigue mat, note pad, pencil, sharpie, grinding wheel, etc. Personalize your toolbox according to the fundamental machine shop tools listing for machinists and also your needs, certainly, these devices additionally contribute to various other areas and applications. DEK uses a collection of machinists devices to inspect and also measure our CNC manufacturing components to make certain top quality as well as accuracy.
